Rotary Unions

Rotary union is a specially designed mechanical device that is used to transfer fluid from a stationary inlet to a rotating outlet. This allows the rotation of unified parts. Fluids are used in rotary joints and unions. It includes thermal, water, steam and coolants as a fluid power media. Various types of rotary unions are available which have different specifications and different sizes.

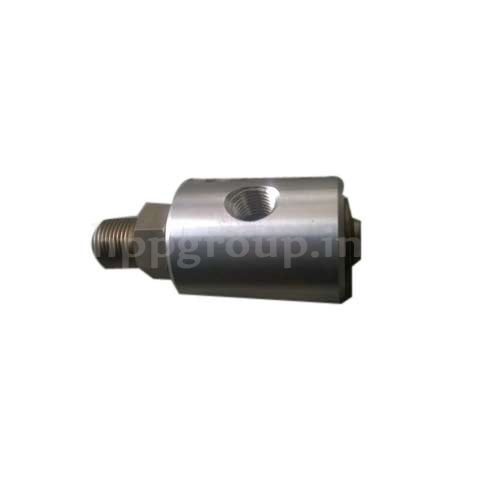

It is a multi-passage rotary joint which gives the simultaneous supply up to 10 different media. One rotary can be joined with a slip ring, with a hollow shaft rotary joint or with an another rotary joint. Manufacturers of the Single Flow Rotary Union design great varieties of products as per client's request. But there are some desired technical specifications which should be maintained.

With this modern technology, you can transfer the medium at high speed. For these unique constructions, the use of rotary union is beneficial.

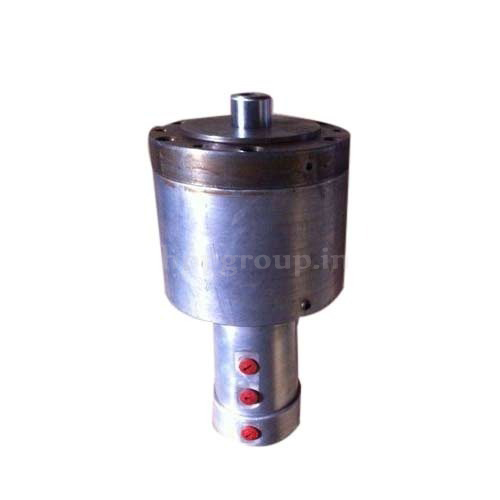

A rotary cylinder is a device that produces a rotary motion or torque. This is purely designed in a mechanical way. It uses the principle where linear motion gives rise to the rotation. It is the most common cylinder which is electrically powered. Apart from this, other cylinders are powered by hydraulic or pneumatic power.

The motion which is produced by this device may be continuous for an electric motor or it may be a fixed angular motion in case of the stepper motor or servo motor. The manufacturers of Rotary Cylinder use the high-quality material for making this device. Their main aim is to provide the optimum quality of service to their valuable clients at a reasonable price.

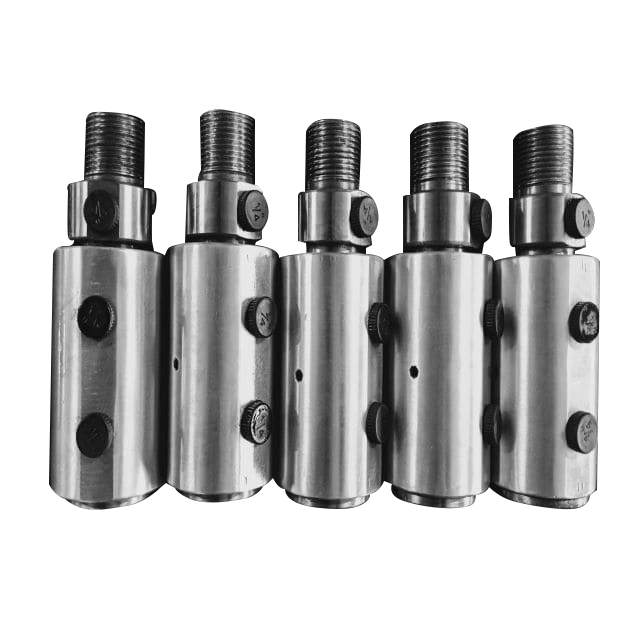

Rotary union or swivel joint is a specially designed mechanism which is used to transfer fluid from a stationary inlet to a rotating outlet. This allows the rotation of unified parts. Fluids are used in rotary joints and unions. It includes thermal, water, steam and coolants as a fluid power media. Various types of rotary unions are available which have different specifications and different sizes. The manufacturers of Rotary Unions design this device in such a way that makes it more cost effective. For the above unique features, this device has gained a wide popularity. The features of this device are as follows-

• The rotor part is made of stainless steel or metal ceramics.
• It is designed with radial shaft seal which has elastic contact. The design of seal is selected according to the required performance.
• The lubricated ball bearings are used for the lifetime.

Pneumatic rotary union uses the pressurized air for rotating the mechanical components. The manufacturer of Pneumatic Rotary Union designs this device as per client’s request. But they have to maintain some standard features which make this device more unique and cost effective. Their main aim is to provide the optimum quality of service to their valuable clients at a budget friendly price. They are largely used in our modern industry for the following purposes.

• These are used in machine loading and unloading.
• It may be used in material handling.
• Anyone can use it for packing purpose.
• Testing and quality control are the different areas where you can use this device.
